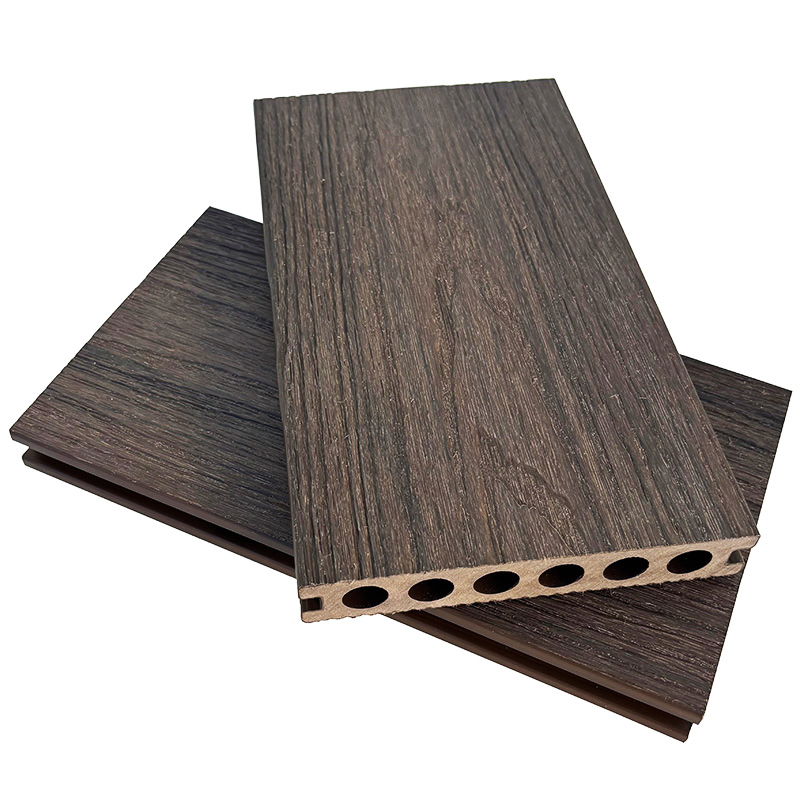

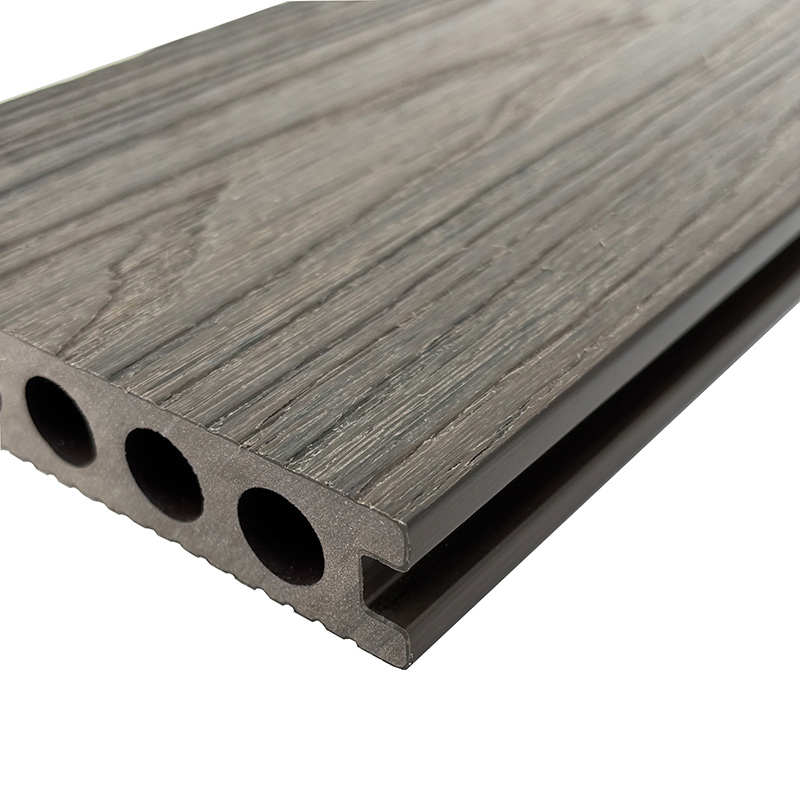

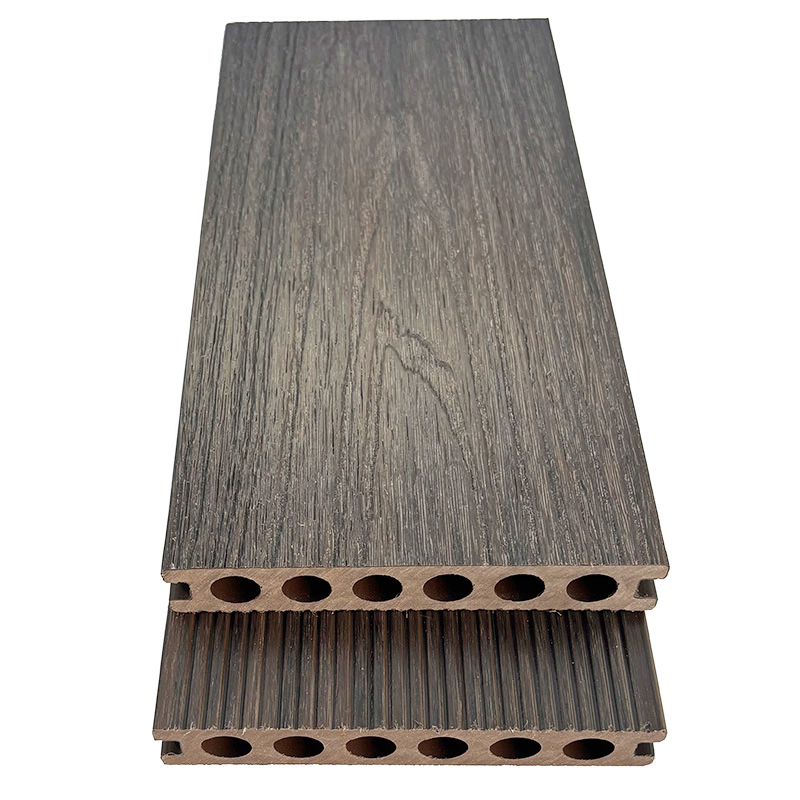

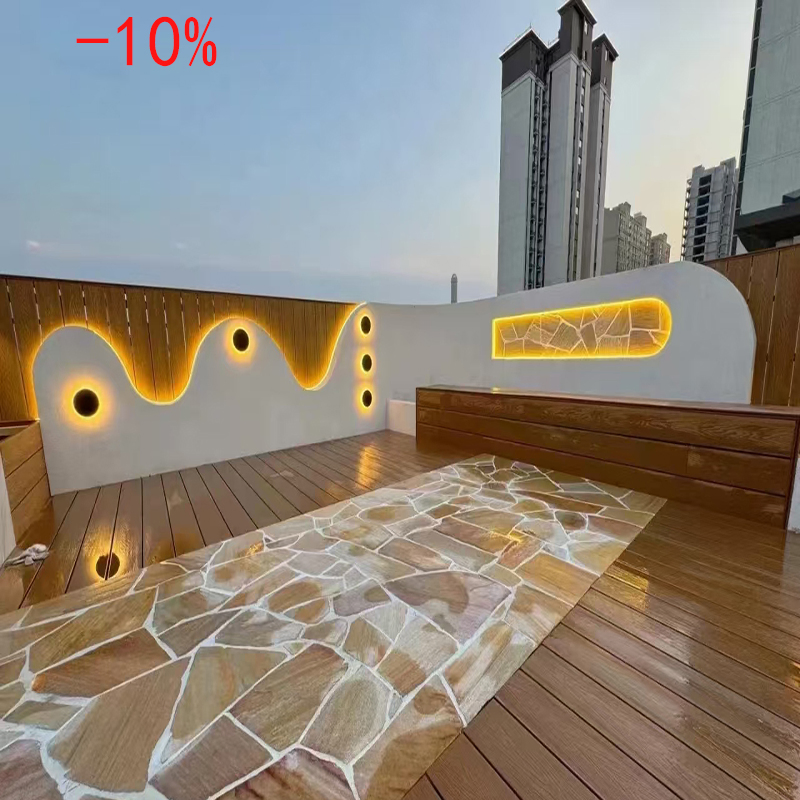

Co-Extruded WPC Decking Outdoor 23*138mm

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
COS 138-23
Style
Co-Extrusion/Capped WPC
Env. Standard
E0
Function
Waterproof, Long Service Life
Pattern
3D Wood Grain
Color
Available 12 Colors
Certification
ISO, CE, SGS, Intertek
Usage
Household, Outdoor, Commercial
Size
138X22mm
Service Life
20-30 Years
Lead Time
15 Days
HS Code
3918909000
Product Description

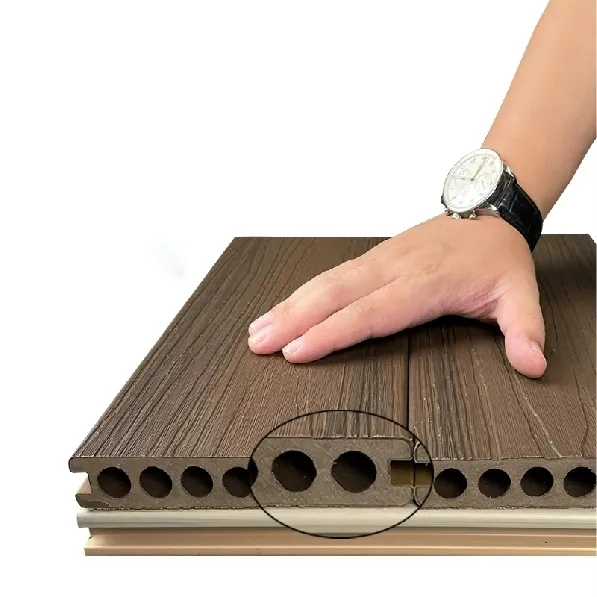

Co-Extruded WPC Decking Detail
Co-Extruded WPC Decking View
Composition Protective layer: 100% modified HDPE; Core part: 55% recycled wood + 30% HDPE +15% chemical additives.
About Colors 12 colors, but can be customized.
Board Length 2m, 2.2, 2.5, 2.9, 3m, 3.66m (12ft), 4m, 4.88m (16ft), 5m, 5.8m
Installation Clip Installation
Accessories Clip, screw, joist, trim, joist screw.

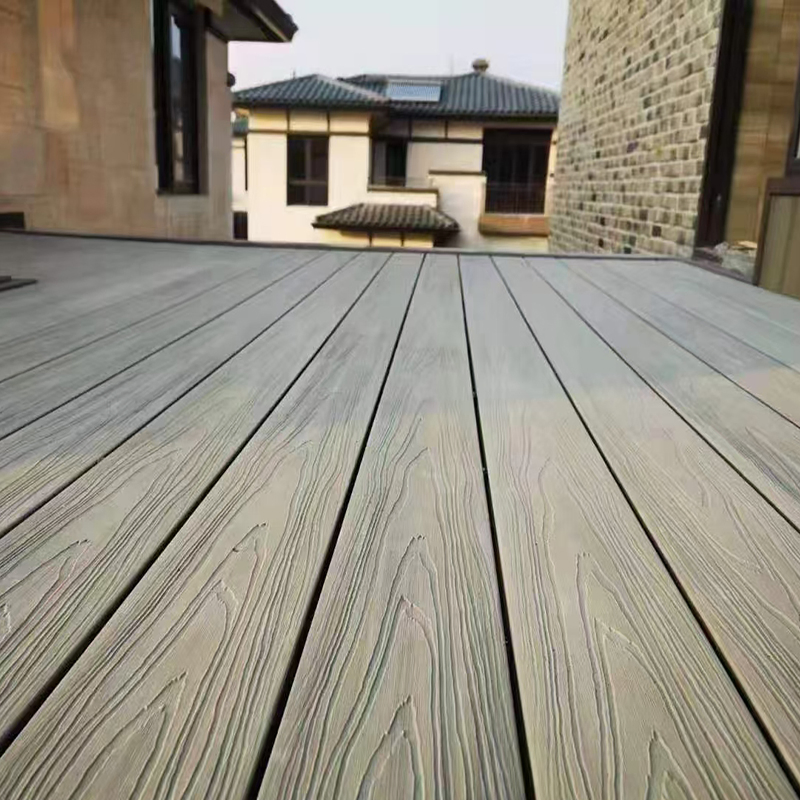

Application Terrace, Veranda, Garden, Swimming pool, shopping mall, Hotel, Restaurant etc.

Note: The Decking is reversible. We recommend using the narrow grooved side in your project for better anti-slip performance. Bfl class fire-resistance is available upon request.

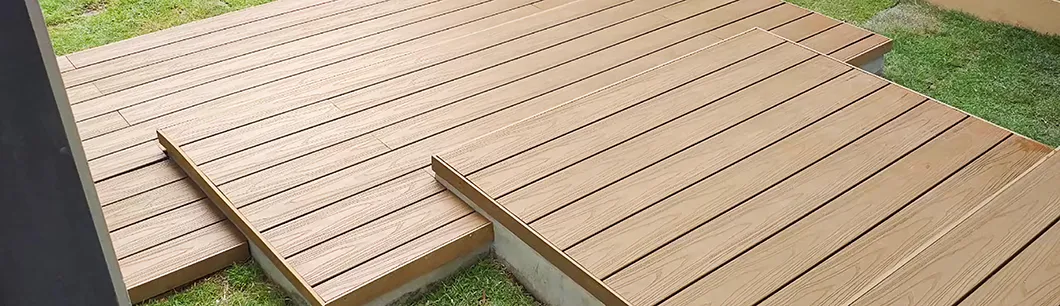

WPC Decking Dimensions
Technical Data
Testing Items Results Testing Standard
Moisture Content0.16%EN 15534-1:2014
Linear thermal expansion40.1*10-6K-1EN 15534-1:2014
BRINELL Hardness77EN 15534-1:2014
Slip ClassificationCDIN 51097:1992
Impact resistancePASSEN 15534-1:2014
Tensile propertyMOR: 21.91MPa; MOE: 5054MPaEN 15534-1:2014
FormaldehydePassEN717-1:2004

* Data based on solid 140*25mm; results vary by size and thickness.

Available Colors & Certificates

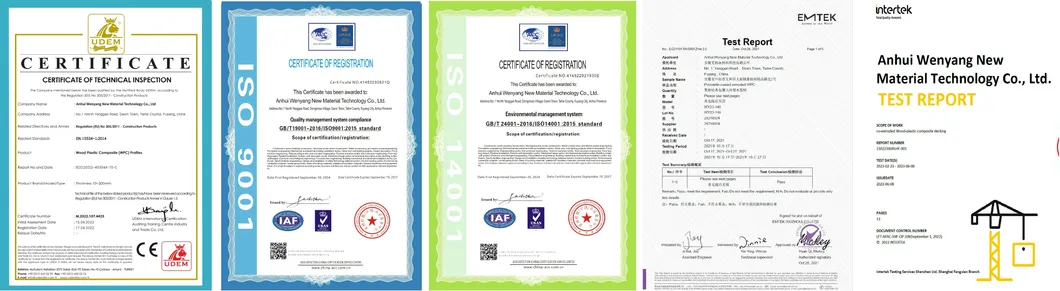

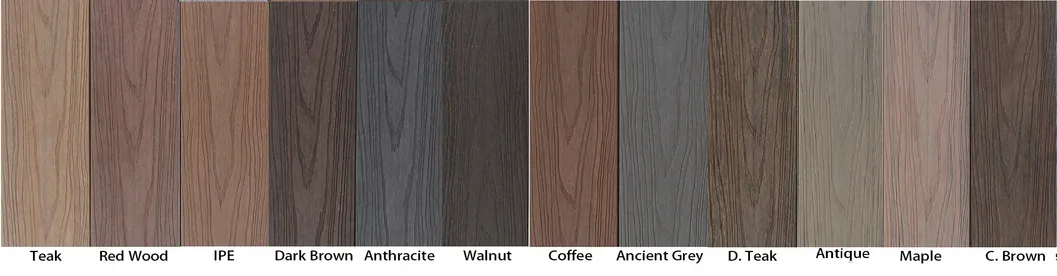

WPC Color Chart Quality Certificates
Why Choose WPC Composite Products?
Natural wood feeling and texture
Eco-friendly, 100% recycled materials
Low maintenance, no paint or oil required
Weather resistant (-40°C to 60°C)
Resistant to termite and insect attack
Durable, long life without rot or crack
Production & Quality Control

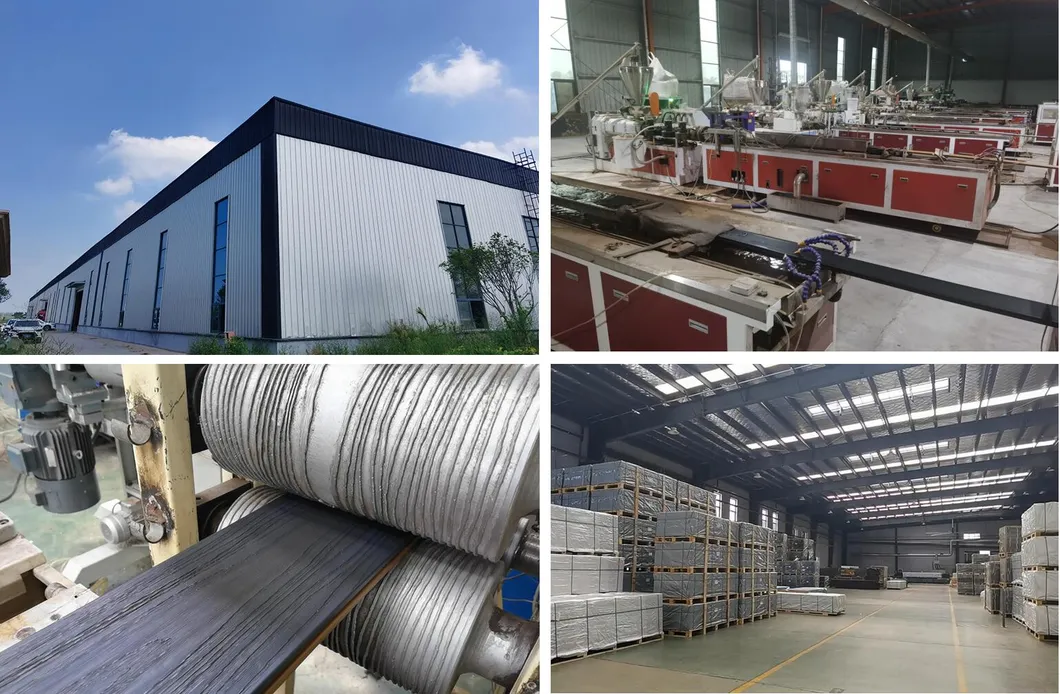

Production Process Factory Overview
FAQ
Q1: What is the expected service life of this WPC decking?
A: Our co-extruded WPC decking is designed for durability and typically lasts between 20 to 30 years depending on environmental conditions and usage.
Q2: Is the decking completely waterproof?
A: Yes, the modified HDPE protective layer provides excellent waterproof and moisture-resistant properties, making it ideal for outdoor and poolside applications.
Q3: Does the color fade over time?
A: Our co-extrusion technology includes UV stabilizers that significantly reduce fading compared to traditional wood, maintaining its vibrant look for years.
Q4: How do I install the decking?
A: The decking uses a professional clip installation system. We provide all necessary accessories including clips, screws, and joists for a seamless finish.
Q5: Is this product environmentally friendly?
A: Absolutely. It is made from 100% recycled materials (recycled wood fiber and HDPE) and meets the E0 environmental standard.
Q6: Can I customize the color and size?
A: We offer 12 standard colors, but customization is available for specific project requirements. Standard lengths range from 2m to 5.8m.
